Rose support design process

The rose support has been built (well, almost finished) so you've seen the final design. As I've said I really didn't have a good idea of what I wanted to do, so after I set the two posts I got to work on the computer.


The first design was the simplest: just add some horizontal members to the vertical posts. This would give me something to tie the rose canes to, but almost immediately I knew this was not adequate. Sure it would be easy to build, but I knew I wouldn't be happy with having to tie many rose canes to it. Plus it wasn't really my style.



***


So I started modifying. First by moving alternate rails to the back of the posts:


This created a little space in which the canes could be trapped and held in place without tying, but that space was just too small -- the plants would all be squeezed into this 3.5" (9cm) space.

So I expanded it a little bit:


Better, but now the design was getting visually busy, so I modified it a bit:


And then expanded the space even more:

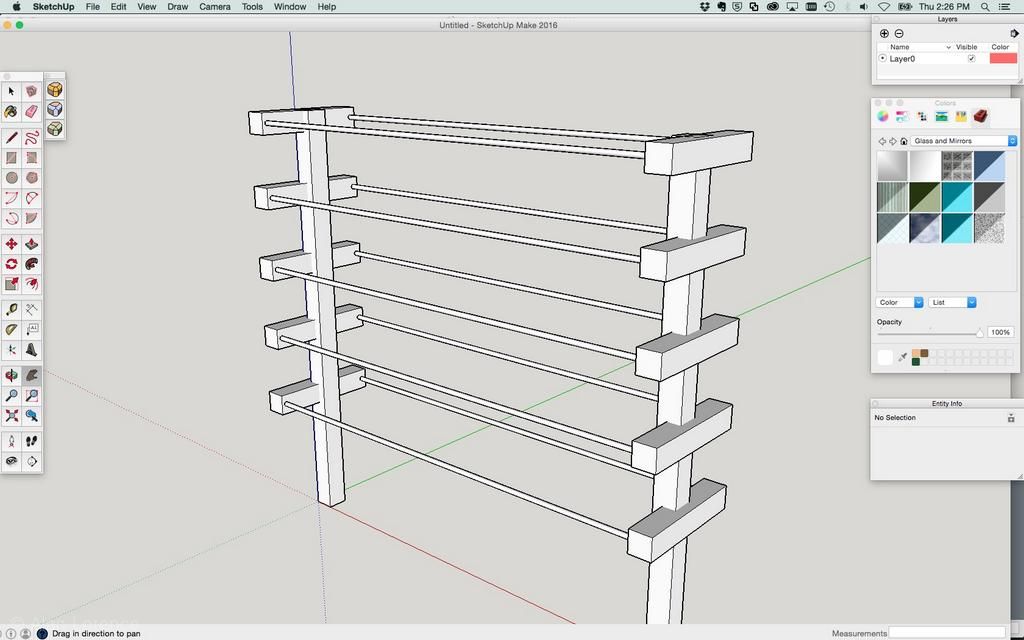

At this point I thought that the horizontal parts were a bit heavy, so I changed them from wood (2x2's) to metal bars:


I was pretty happy with this, especially since there would be wood and metal combined -- much better than wood alone! Thinking functionally though it felt like I needed a way to direct more canes along the length of the structure (parallel to the driveway), so I added vertical pieces to the corners:


Okay, that works functionally, but I don't really like it. Plus it would be difficult to build.

I did two things to wrap this up. First, I changed the short, cross pieces from 4x4's to 2x2's. Second, I made the vertical parts wood:


(I also added a sixth bar at the bottom, forgetting about the slope of the driveway. There are only five bars in the one I built because the uphill post doesn't have room for a sixth).

Add some color to help visualize the materials:


Finally a little rendering to see things a bit better:


Seeing the final (almost final) product in the garden, I think I made good decisions on the design!
